FSRWP®
About FSRWP®

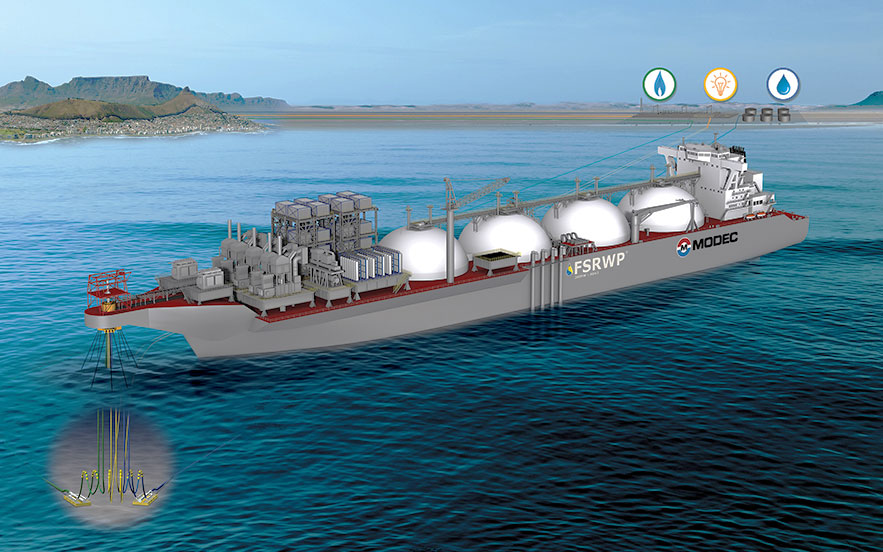

MODEC has recently expanded its product range to include FSRWP® (Floating Storage Regasification Water-Desalination & Power-Generation) and its associated systems for Power only (FSR-Power®) and Water only (FSR-Water®).
All Power & Water solutions make use of the abundantly available LNG as a fuel source to bring clean Power and Water either on an IPP (Independent Power Producer), EPCI (Engineering, Procurement, Construction and Installation), BOO (Build, Own and Operate) or BOOT (Build, Own, Operate and Transfer) basis within 18-24 months of contract award to any shore. Temporary power solutions can be provided within 60-90 days.
Floating Solutions provide clean water and/or electrical power more economically, faster and more efficiently than conventional land based solutions. The FSRWP® is the evolution of an FSRU (plus "Water & Power") as the FPSO was the evolution of the FSO (plus "Production").
FSRWP® has been featured in the media:
FSRWP® - The Next Generation FSRU
(03:58)
Pre-Engineered FSRWP® Solutions
| Floating Water & Power Sizes | SMALL | MEDIUM | LARGE | ALL SIZES | ALL SIZES |
|---|---|---|---|---|---|
| System | FSR-Power® | FSR-Power® | FSR-Power® | FSR-Water® | FSRWP® |
| Vessel Type | Barge (New-build) |
Moss Tanker or Barge | VLCC or New-build | Aframax to VLCC | Various |
| Power Generation Range (for export) |
83 - 166 MW | 83 - 480 MW | 240 - 1,000 MW | NA | 160 - 1,000 MW |
| Operation & Maintenance | ✔ | ✔ | ✔ | ✔ | ✔ |
| On-board Accommodation | Option | ✔ | ✔ | ✔ | ✔ |
| LNG Storage Volume | 20 - 25km3 | 67 - 135km3 | 48 - 180km3 | 48 - 180km3 | 48 - 180km3 |
| Fuel Autonomy (LNG) - at max power |
15 - > 30 days | 12 - > 150 days | 9 - > 40 days | 15 - > 45 days | 30 - > 105 days |
| Length (Overall) in meters | 110-130 | 275 | 330 | 240-330 | 330 |
| Beam in meters | 30 - 39 | 44 | 58 - 60 | 42 - 60 | 58 - 60 |
| Draft (moulded) in meters | 5 to 8 | 10 to 12 | 15 to 20 | 13 to 20 | 15 to 20 |
| Self-Propelled | X | ✔ | ✔ | ✔ | ✔ |
| Voltage (HV) Substation | ✔ | ✔ | ✔ | ✔ | ✔ |
- *FSRWP, FSR-Power and FSR-Water are registered trademarks of MODEC, Inc.
