Equinor Bacalhau FPSO

  • FPSO
  • New-build
  • 2,050m
  • Spread Mooring
  • EPCI
  • O&M
Equinor Bacalhau FPSO

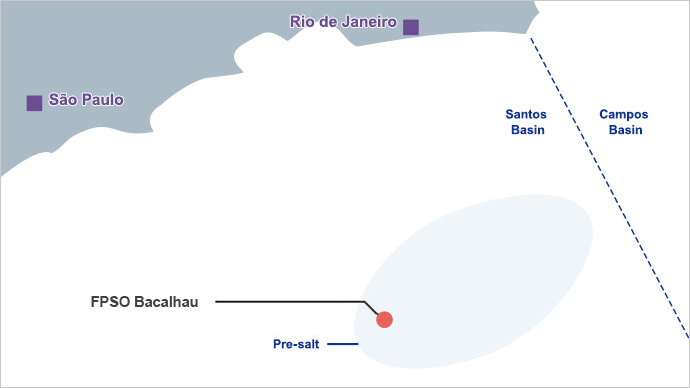

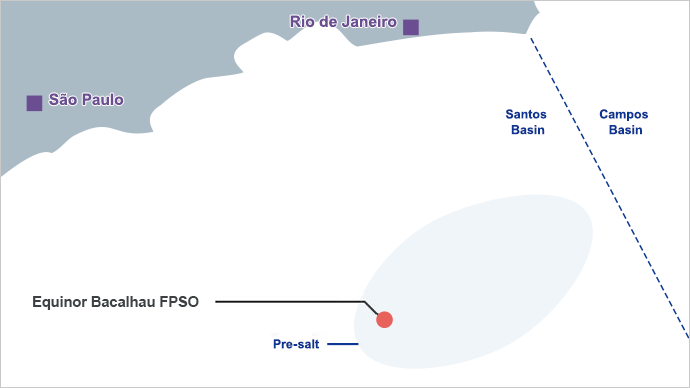

The FPSO will be deployed at the Bacalhau (formerly Carcará) field in the BM-S-8 and Carcará North blocks located in the giant “pre-salt” region of the Santos Basin some 185 km off the coast of the municipality of Ilhabela/SP, in the state of São Paulo, Brazil.

Following a Sales and Purchase Agreement (SPA) for the FPSO which was signed between Equinor and MODEC in January 2020, with respect to the Front End Engineering Design (FEED) and pre-investment of the FPSO, MODEC was officially awarded the contract for Engineering, Procurement, Construction and Installation (EPCI) for the FPSO in June 2021 further to Final Investment Decision (FID) on the project. MODEC will also provide Equinor with operations and maintenance service of the FPSO for the first year from its first oil production, after which Equinor plans to operate the FPSO until end of the license period in 2053.

The FPSO vessel will be permanently moored at a water depth of approximately 2,050 meters by a spread mooring system to be supplied by MODEC group company, SOFEC, Inc.

The FPSO will be one of the largest FPSO ever delivered to Brazil. It will have a large topside designed to produce up to 220,000 barrels of crude oil per day, produce and inject up to 530 million standard cubic feet of associated gas per day and inject up to 200,000 barrels of seawater per day. Its minimum storage capacity of crude oil will be 2,000,000 barrels. As a remarkable point, the project will use a Combined Cycle Power Generation System as a solution to help reduce CO2 emission of the facility on the operational phase.

The FPSO will be the first application of MODEC's “M350 Hull”, a next generation new built hull for FPSOs, full double hull design, which has been developed to accommodate larger topside and larger storage capacity than conventional VLCC tankers, with a longer design service life.

The FPSO will be 17th FPSO/FSO vessel delivered by MODEC in Brazil, 9th FPSO in the pre-salt region, as well as MODEC’s first with Equinor.

Unit Name
Equinor Bacalhau FPSO
Field
Bacalhau field
Country
Brazil
New/Conversion
New-build
Water Depth
2,050 m
Mooring Type
SOFEC Spread Mooring
Storage Capacity
2,000,000 bbls
Oil Production
220,000 bopd
Gas Production
530 mmscfd
Produced water re-injection
200,000 bwpd
Client
Equinor Brasil Energia Ltda
Contract
EPCI + O&M
Scope of Work
Engineering, Procurement, Construction and Installation (EPCI) and Operation & Maintenance
First Oil
Planned for 2024
O&M Period
1 year
Current Status
Under Construction
